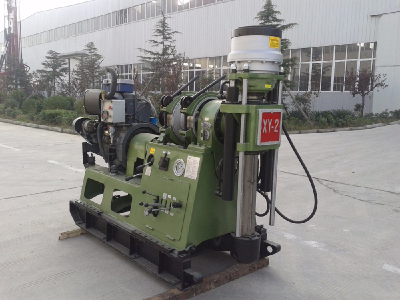

Diamond core drilling rig XY-2
XY-2 diamond core drilling rig is mainly used for engineering exploration, water well drilling and also mineral exploration.
XY-2 diamond core drilling rig is mainly adapted to suit for engineering exploration, water well and foundation hole drilling, it can also be used in mineral exploration with diamond bit or tungsten-carbide tipped bit.
Thie equipment is compact in structure, small in size, light in weight and convenient in transportation. It is with big spindle dia. which is cery suitable for engineering construction.
Main Technical Information of XY-2 Core Drill Rig
1. Basic Parameters:
Drilling Depth:
(1) Core Drilling
Rod Size | Drill Depth |
42 mm drill rod : | 530 m |
50 mm drill rod: | 385m |
60 mm drill rod: | 320 m |
43 mm wire-line drill rod: | 640m |
53 mm wire-line drill rod: | 500m |
63 mm wire-line drill rod: | 380 m |
AW drill rod: | 530 m |
BW drill rod: | 420 m |
NW drill rod: | 320 m |
AQ wire-line drill rod: | 565 m |
BQ wire-line drill rod: | 460 m |
NQ wire-line drill rod: | 350 m |
(2) Projects of Hydrology, Water Well and Large-diameter Hole Drilling
Rod Size Hole Diameter Drill Depth
60 mm 150 mm 250 m
60 mm 200 mm 200 m
73 mm 300 mm 100 m
Rotation angle of spindle: 0°~360°
I.D. of spindle: 96mm
Overall Dimensions: (L×W×H) : 2220×900×1800 mm
Weight (exclude power unit): 1200 kg
