Quick Details
Place of Origin: Jiangsu, China (Mainland)

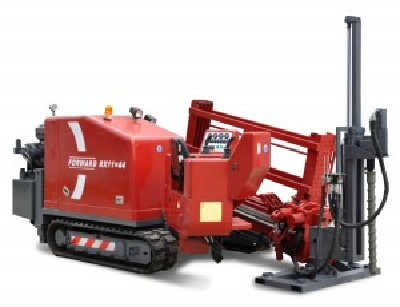

Brand Name: FORWARD
Model Number: RX11X44
After-sales Service Provided: Overseas third-party support available
Pull Back Capacity: 110 KN
Torque: 4 400Nm
SPeed of Rotaion: 180 rpm
Diesel Engine | Model | YC4B | ||||
Power | 67KW | |||||
Rotation System | Shift | 2 | ||||
Low | speed | 0-80 rpm | ||||
Torque | 0-4400 rpm | |||||
High | speed | 0-160 rpm | ||||
Torque | 0-2200 rpm | |||||
Pullback System | Shift | 2 | ||||
Low | Thrust force | 120KN | ||||
Pullback force | 120KN | |||||
Move speed | 0-23m/min | |||||
High | Thrust force | 60KN | ||||
Pullback force | 60KN | |||||
Move speed | 0-46m/min | |||||
Drill rack angle | 8-16° | |||||
Mud pump | Max.flow | 150L/min | ||||
Max.pressure | 7 Mpa | |||||
Move of rig | Max ground drive speed | 0-3 Km/h | ||||
Rod | Φ50 L=2000mm | |||||
General | Weight | 6500 Kg | ||||
Length | 5800mm | |||||
Width | 2000mm | |||||
Height | 2200mm | |||||
